24 Pin Clarion OEM Infotainment Main Power & Speaker Connector Female (with 24 Crimp Terminals)
Build, retrofit, or repair your OEM infotainment wiring with this OEM-Grade 24-Pin Clarion Main Power & Audio Connector Female Socket Kit. Designed specifically to mate with OEM Clarion factory-fitted head units, this connector housing includes all 24 matching automotive-grade crimp terminals for a factory-standard wiring harness assembly without wire cutting or splicing.
Key Features
- Precision OEM Fitment: Exact keyway alignment and top locking latch designed to plug directly and securely into Clarion factory-fitted infotainment units.
- Hybrid 24-Pin Layout: Accommodates high-current power lines and signal wires simultaneously with 20 Signal Terminals and 4 Power/Ground Terminals included.
- High-Grade Conductivity: Corrosion-resistant, tin-plated automotive crimp terminals ensure minimal voltage drop and distortion-free speaker audio transmission.
- Vibration-Proof Retention: Built-in terminal locking tabs keep pins firmly seated inside the housing cavity, preventing terminal push-out under driving vibrations.
- Ideal for Harness Builders & Retrofits: Perfect for building custom plug-and-play wiring harnesses, converting factory stereo wiring, or replacing burnt/damaged factory connectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | 24-Pin Female Wire-to-Unit Housing |
| Compatibility | Factory-fitted Clarion OEM Head Units / Infotainment Systems |
| Included Terminals | 20 × Signal Terminals + 4 × Power/Ground Terminals (24 Total) |
| Housing Color | Grey |
| Housing Material | Heat & Flame Resistant Automotive Nylon (PA66) |
| Compatible Wire Gauge | 0.35 sq mm – 0.5 sq mm (Signal) / 0.75 sq mm – 1.5 sq mm (Power/Ground) |
Applications
- Primary Function: Main power (+12V Battery, +12V ACC, Ground), front/rear 4-channel speaker outputs, steering control lines, reverse trigger, illumination, and CAN communication lines into the head unit.
- Compatible Vehicles: Maruti Suzuki, Nissan, and other OEM vehicles fitted with standard 24-pin Clarion factory audio and navigation head units.
Package Contents

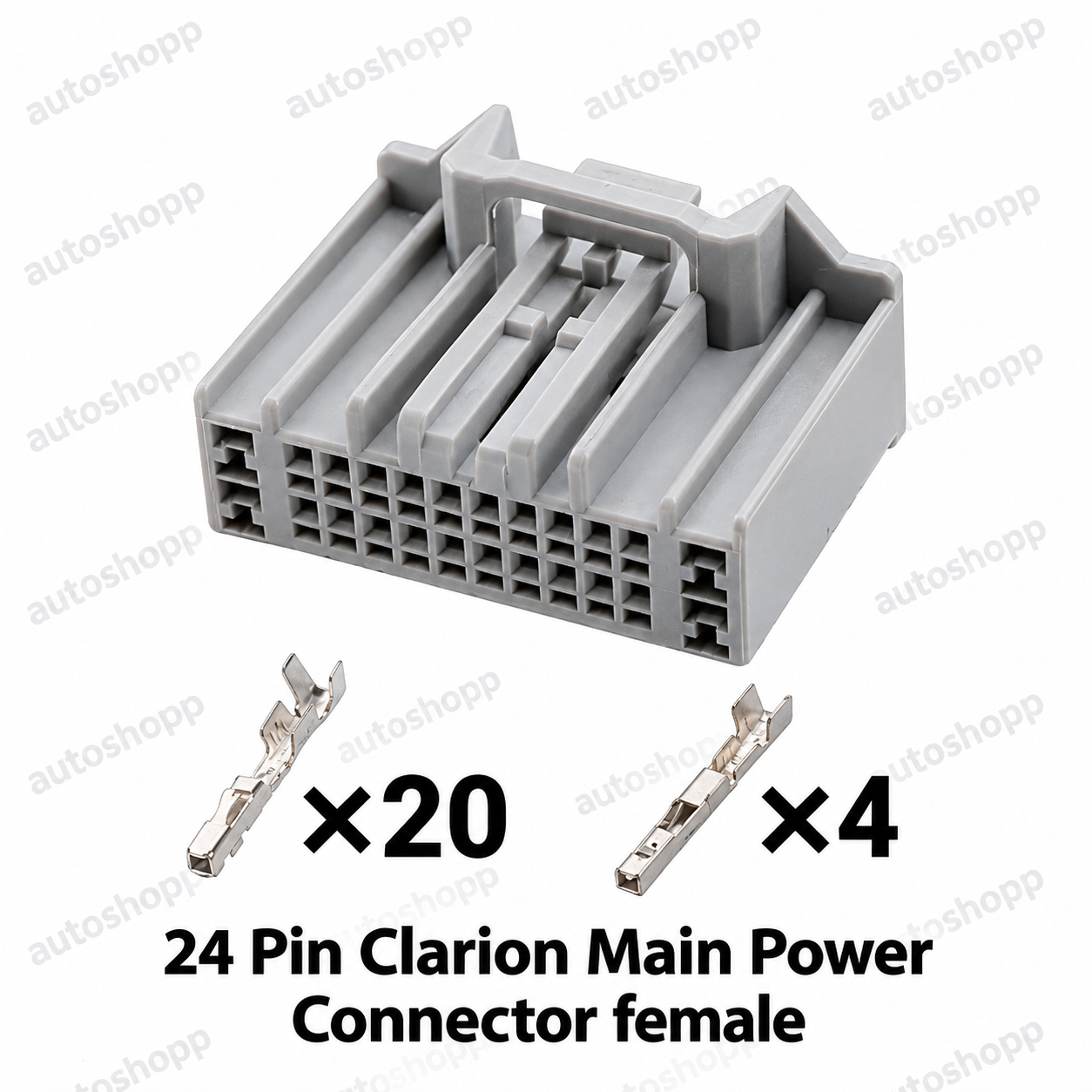

- 1 × 24-Pin Clarion Main Female Connector Housing (Grey)
- 20 × Standard Automotive Signal Crimp Terminals
- 4 × Heavy-Duty Power/Ground Automotive Crimp Terminals
